PRODUCT FEATURES:
ENGINEERED TO OUTPERFORM, THE NEW GENII SERIES of inverters continues the tradition of quality that made the reputation of our M Series. Based on Tundra’s proven technology foundation, the GENII Series is engineered with one goal in mind: to provide unmatched performance for truck drivers and fleet owners. And because it comes with our latest innovation – Power Saving Technology – Tundra makes it easier than ever for fleets to successfully manage their truck inverters.
- POWER SAVING TECHNOLOGY:
- This first-ever technical innovation can trigger a complete shutdown after 1 hour in error code mode.
- While most (if not all) inverters continue to deplete the batteries after an error code shutdown, PST prevents catastrophic and costly battery drainage.
- ELECTRICAL SPECIFICATIONS:
- Continuous Output Power: 2000 W
- Peak Output Power: 4000 W
- Input Voltage (Nominal): 12 VDC
- Operating Input Voltage: 11-16 VDC
- Output Voltage: 120 VAC +/− 3%
- Output Frequency: 60 Hz
- Output Wave Form: Modified
- DC Efficiency (Peak): 90%
- AC Efficiency (Peak): 93%
- Power Saving Technology: Included
- GENERAL SPECIFICATIONS:
- AC Outputs: 2 NEMA 5-15R
- Operating Temperature: −30° to 131°F
- Cooling Fan(s): Thermostatic

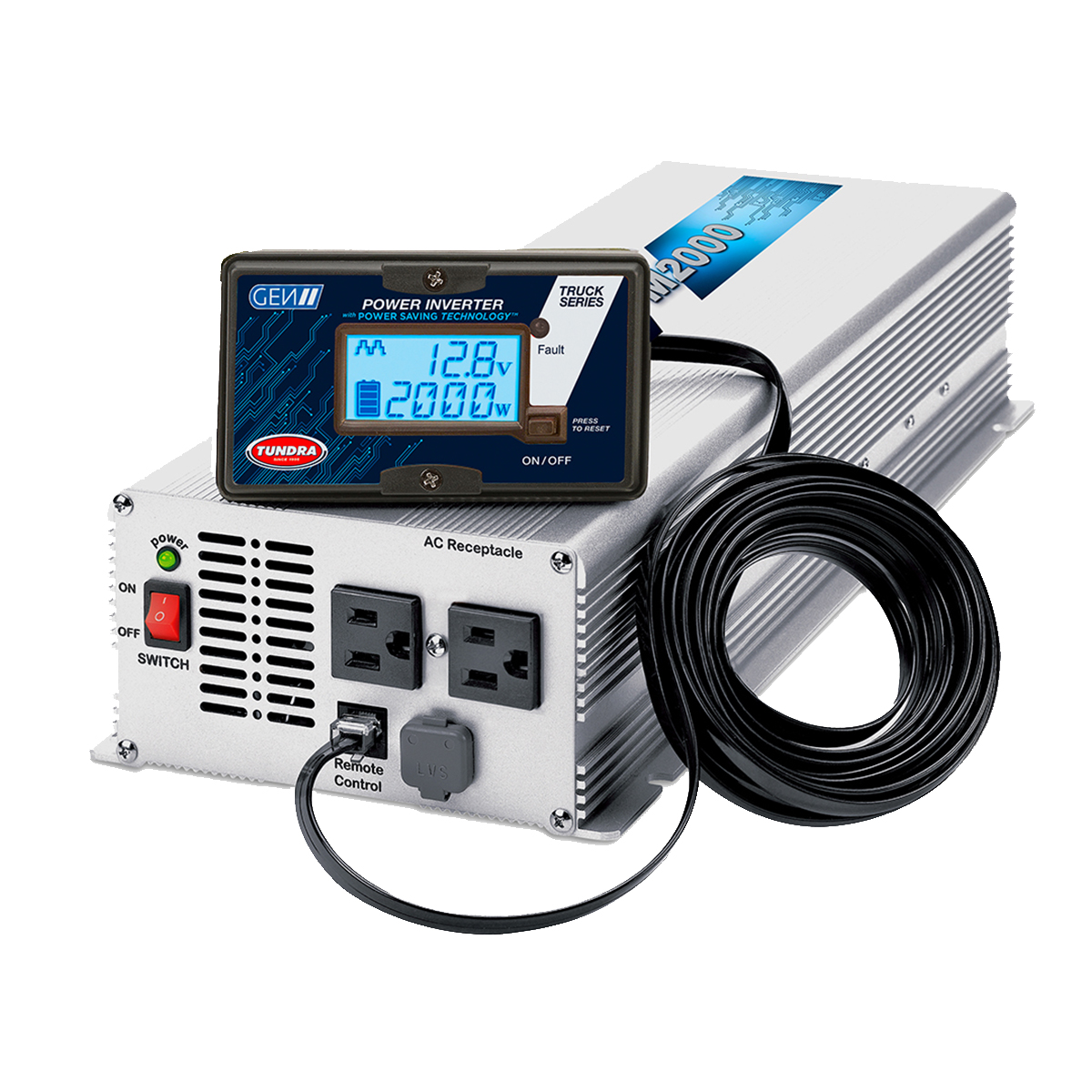

- LCD Multidata Monitor: Liquid crystal display (LCD)
- Construction: Aluminum
- DC Inputs: Blocks for 3/8˝ terminals
- DIMENSIONS & WEIGHT (L × W × H):
- Unit Dimensions (in): 16.9 × 7.1 × 3.5
- Unit Dimensions (cm): 43.0 × 18.0 × 9.0
- Unit Weight (lbs): 8.6
- Unit Weight (kg): 4.0
- Shipping Dimensions (in): 19.9 × 11.5 × 7.2
- Shipping Dimensions (cm): 50.5 × 29.0 × 18.3
- Shipping Weight (lbs): 11.8
- Shipping Weight (kg): 5.4
- Warranty: 1 year + 1-year option*
*Eligible power inverters must be installed using a matching CM Series Wiring kit.
-
- The warranty applies to new products only and is non-transferable.
- This extended warranty program is an extension to the original one (1) year warranty program, and is subject to the same terms and conditions.
- For more information, please visit tundrainverters.com/en/warranty.
